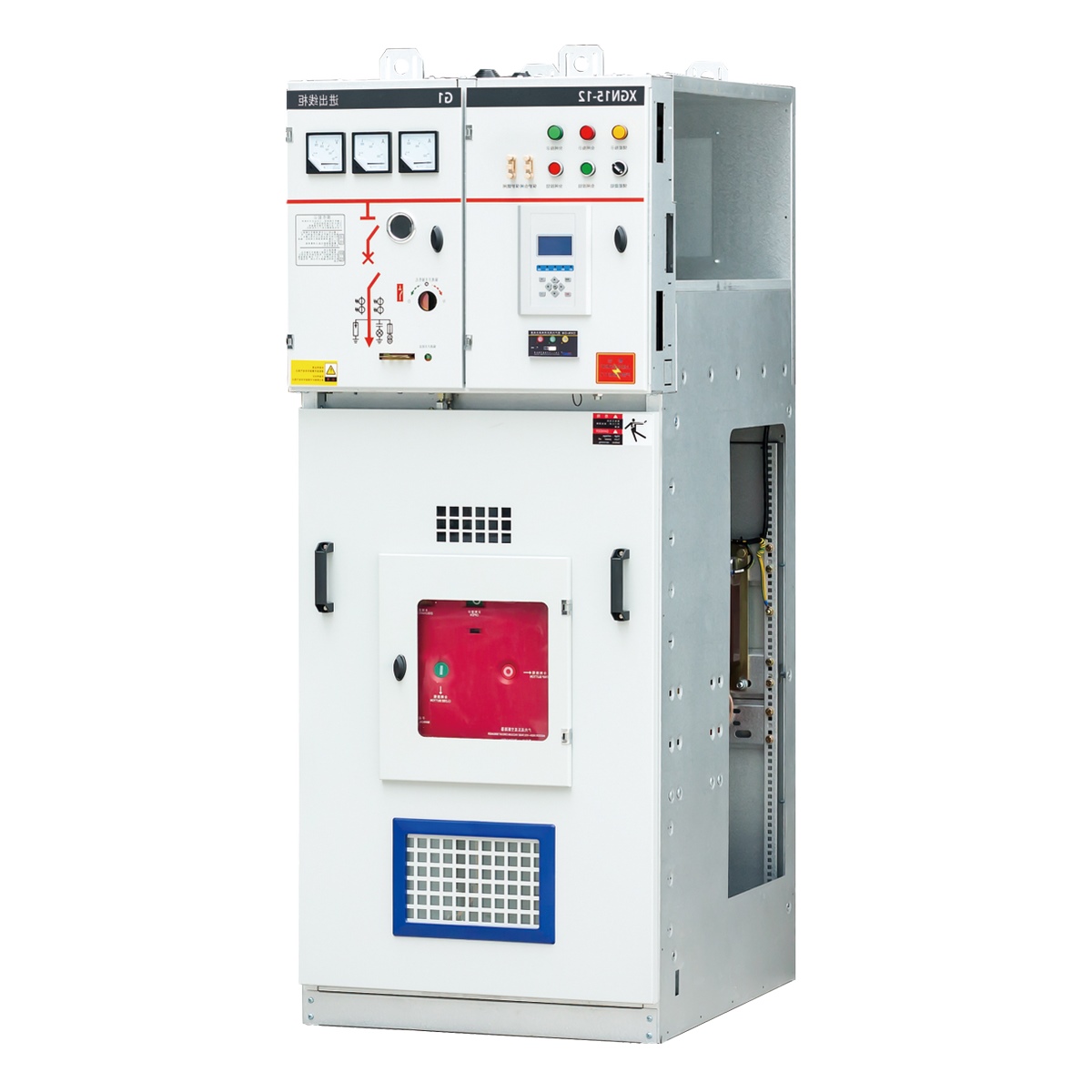

The XGN-12 box-type fixed AC metal-enclosed switchgear is a compact, expandable AC metal ring network cabinet designed for distribution automation systems. This switchgear uses the FLN-12 SF₆ load switch as the main switching device and adopts full air insulation throughout the cabinet, ensuring safe, stable, and reliable operation. Because of its simple structure, flexible operation, dependable interlocking, and easy installation, the XGN-12 box-type fixed AC metal-enclosed switchgear is widely used in 12 kV distribution networks across various industrial, commercial, and municipal applications.
Designed to offer maximum adaptability, the XGN-12 switchgear supports multiple cabinet schemes, installation configurations, and switching components. Users can select different load switches, circuit breakers, or automation accessories according to the engineering requirements of their project. This flexibility makes the XGN-12 box-type fixed AC metal-enclosed switchgear a preferred solution in power systems requiring a compact and easy-to-configure ring network cabinet.
The XGN-12 series AC metal ring network switchgear is a compact and expandable metal-enclosed ring network switchgear designed for distribution automation.
Utilizes FLN-12 SF6 load switch as the main switch, with full air insulation throughout the cabinet.
Features include simple structure, flexible operation, reliable interlocking, and easy installation.
Offers technical solutions tailored to various application scenarios and user requirements.
Main switch options include FLN36-12 (produced by our company) or SFG type SF6 load switch (produced by ABB).
Can be optionally equipped with VS1, VD4/S, ISM type vacuum circuit breakers, or HD4/S5 SF6 circuit breakers as per user needs.
Supports manual and electric operation for both load switches and circuit breakers.
Compatible with electric operating mechanism, PT, CT, FTU, and communication devices to achieve distribution automation.
